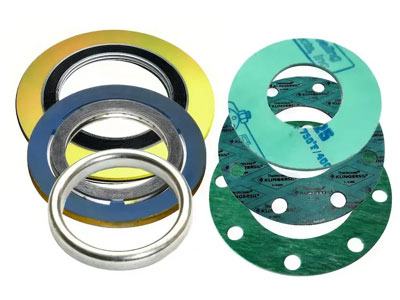

Gasket

Gasket



Nilam Steelage India Private Limited ( ISO 9001:2015 Certified Company ) is one of the most recognized Manufacturer & Exporter of Gasket in India.The raw materials used have been tested and then used to confirm the robust and sturdy character of this product.

Specification of Gasket

Standard	ASTM / ASME / BS / DIN / JIS / BS EN ISO / IS
Material	Carbon Steel, Mild Steel, Alloy Steel, Stainless Steel, Duplex, Super Duplex, Inconel, Hastelloy, Incoloy, Monel, Copper, Brass, Copper Nickel, PTFE, Rubber, Graphite, etc.
Size Range	M6 to M100 in metric series, ¼” to 4” in imperial, custom sizes available upon request.
Thickness	0.5 mm to 5 mm or custom thickness depending on the material and application.
Pressure Rating	Up to 1500 psi, depending on the material and design.
Temperature Range	-50°C to 550°C (depending on gasket material and application)
Hardness (Shore A)	40 to 90 Shore A (for rubber or elastomer gaskets)
Chemical Compatibility	Compatible with oils, fuels, water, acids, solvents, and a wide range of chemicals (depends on material).

Dimension Table Of Gasket

Gasket Type	Flat Gasket, Spiral Wound Gasket, Ring Joint Gasket, O-Ring, etc.
Inner Diameter (ID)	Metric: 10 mm to 1000 mm, Imperial: 1” to 40”
Outer Diameter (OD)	Metric: 30 mm to 1500 mm, Imperial: 2” to 60”
Thickness	Metric: 0.5 mm to 5 mm, Imperial: 0.02” to 0.2”
Bolt Circle Diameter (BCD)	Metric: 50 mm to 1200 mm, Imperial: 2” to 48”
Bolt Hole Diameter	Metric: 6 mm to 40 mm, Imperial: ¼” to 1 ½”
Number of Bolt Holes	Typically 4, 6, 8, or more depending on flange size and gasket type.
Tolerance	± 0.1 mm for standard sizes, ± 0.5 mm for larger diameters.
